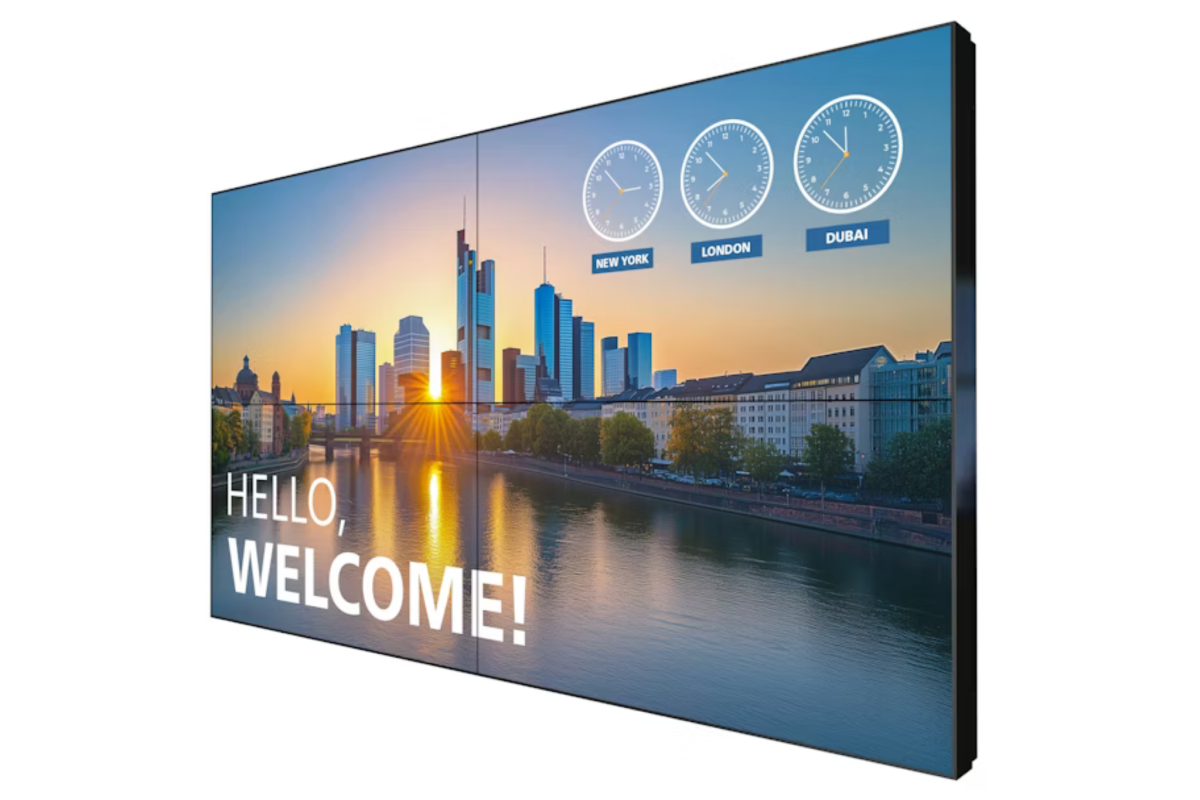

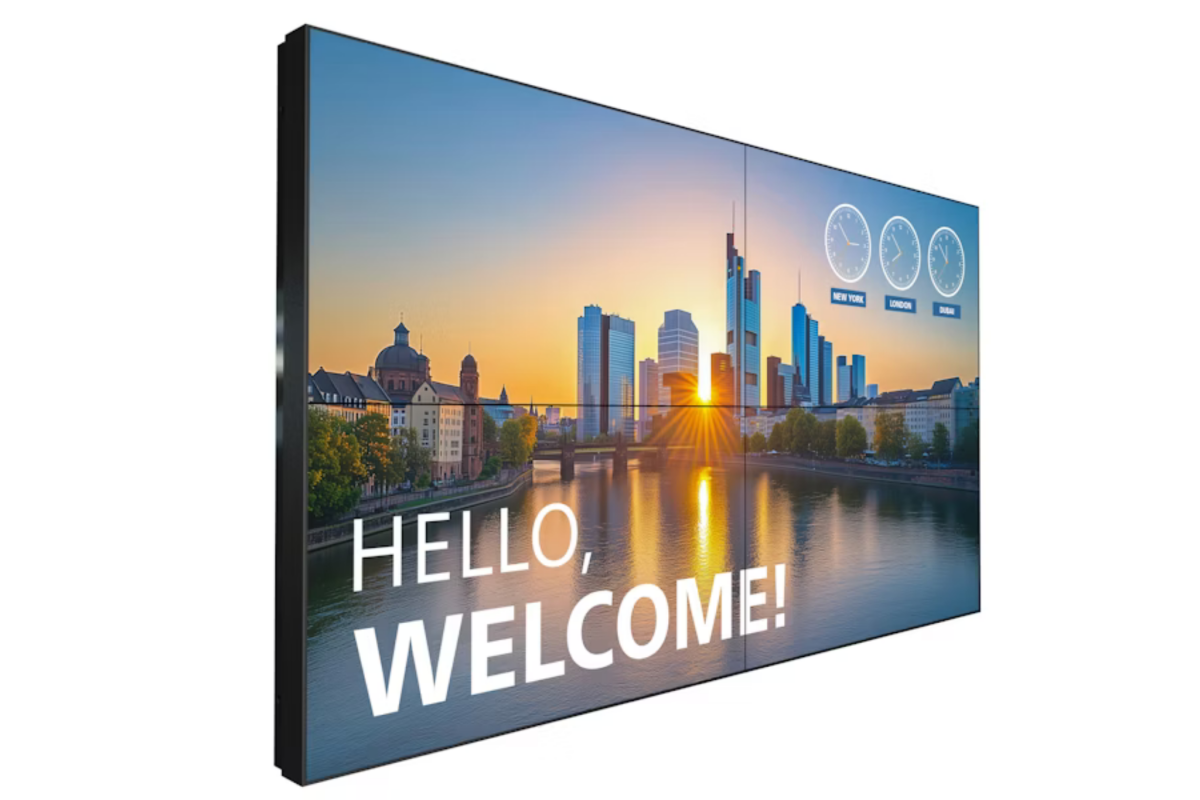

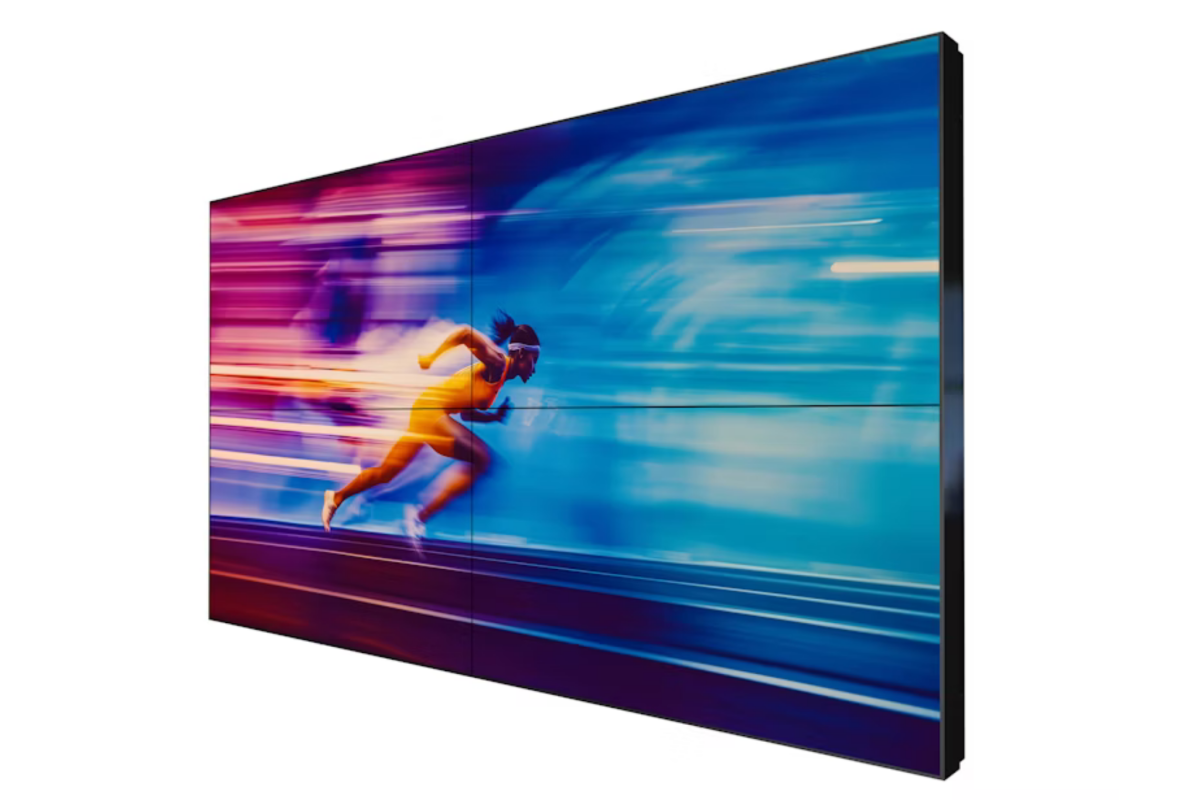

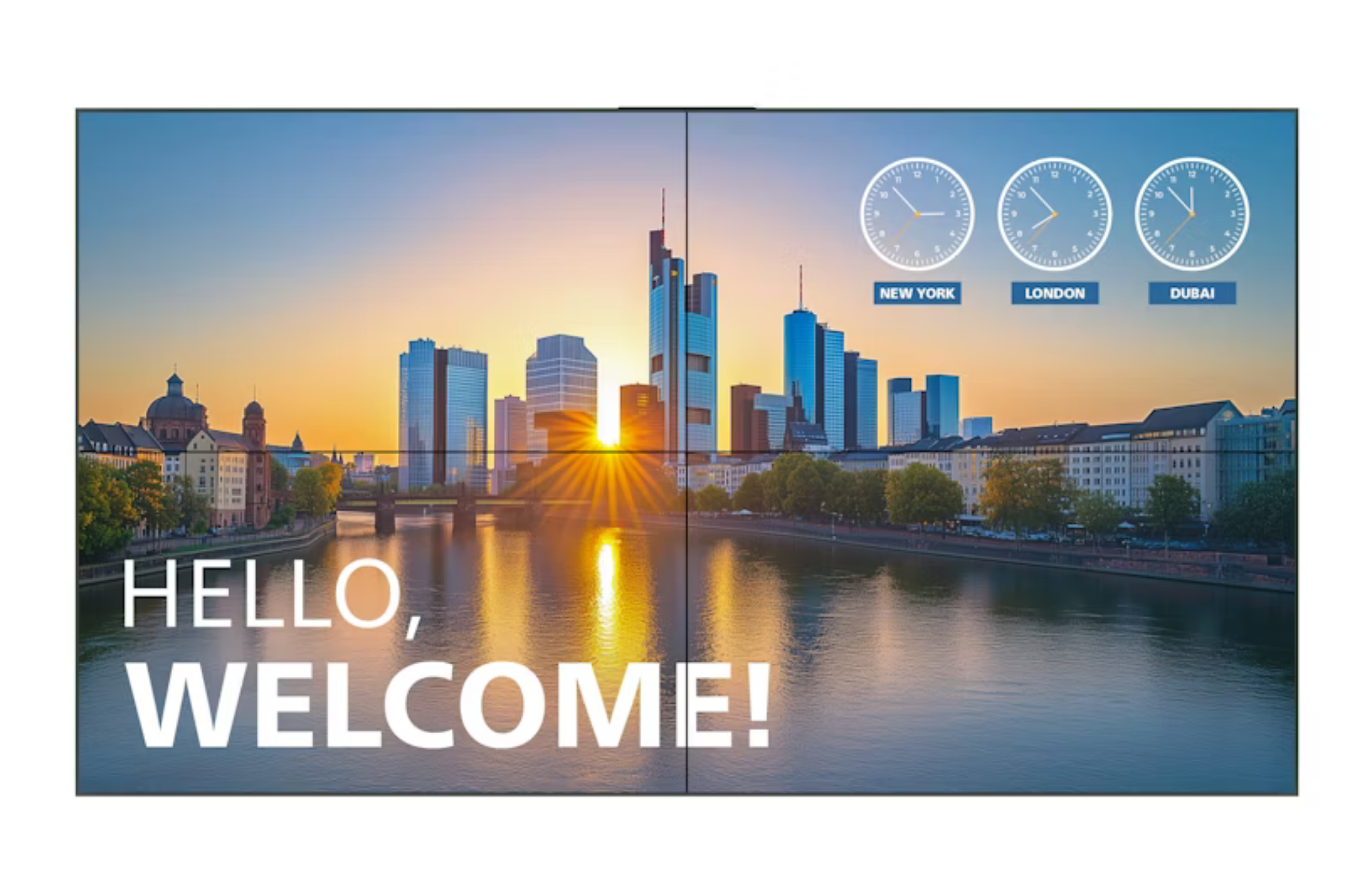

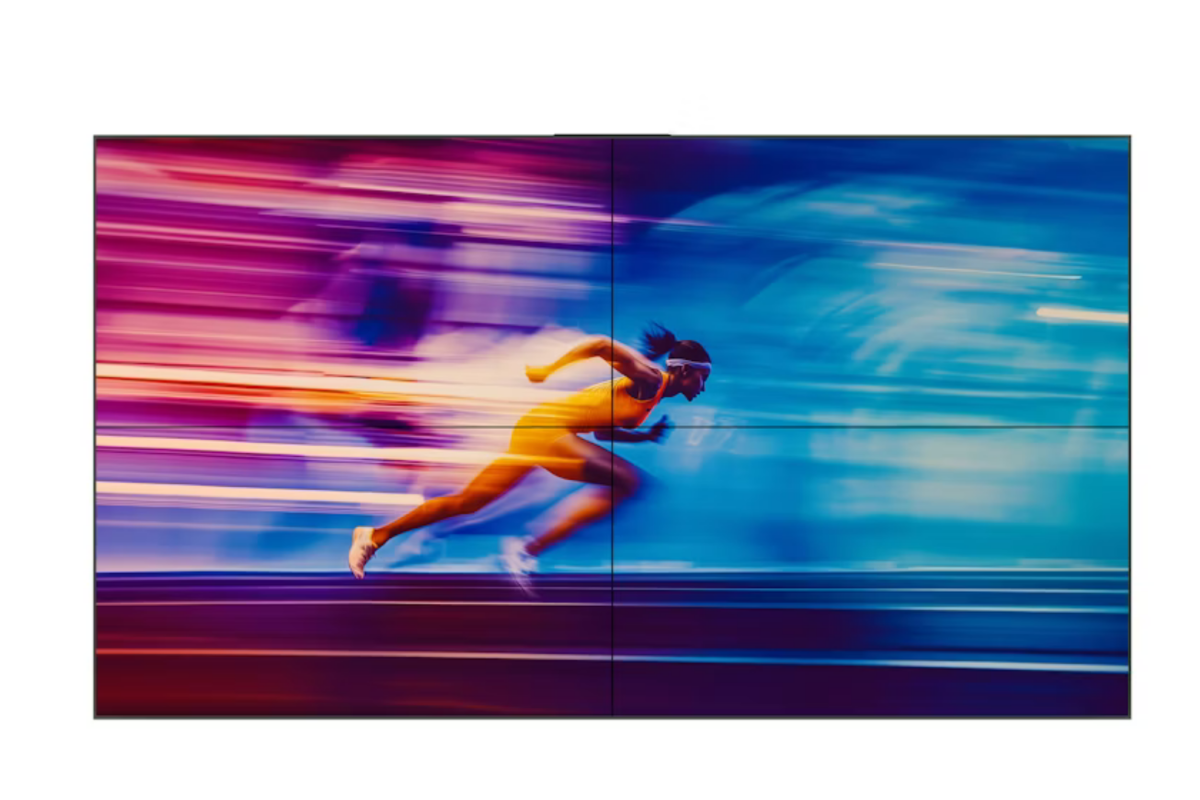

Philips X-Line 55BDL3305X/00 Videowall
Product code:The Philips Videowall 3000 is designed for 24/7 operation and engages customers with its dynamic, immersive content. The CMND platform simplifies the management of content, while FailOver ensures enhanced reliability and peace of mind.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (inch) | 55 inch |
|---|---|
| Contrast ratio (typical) | 1200:1 |
| Viewing angle (vertical) | 178 degree |
| Haze | 25% |
| Brightness | 500 cd/m² |
| Response time (typical) | 8 ms |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Pixel pitch | 0.63 x 0.63 mm |
| Panel resolution | 1920 x 1080p |
| Display colours | 16.7 M |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 degree |
Additional information
Supported Display Resolution
| Computer formats | For details, see user manual |
|---|---|
| Video formats | 1080p, 25, 30, 50, 60 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 2160p, 25, 30, 50, 60 Hz (HDMI/OPS/DP), |
Connectivity
| Video input | Display Port1.2 (x 1), DVI-D (x 1), HDMI 2.0 (x 2), VGA (Analogue D-Sub) (x 1), |
|---|---|
| Audio input | 3.5 mm mini jack (x 1) |
| Video output | DisplayPort 1.2 (x 1) |
| Audio output | 3.5 mm Mini Jack (x 1) |
| External control | IR (in) 3.5 mm jack, LAN RJ45 (x2) |
| Other connections | OPS, USB 2.0 (x 1), Thermal sensor |
Convenience
| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Tiled Matrix | Up to 15 x 15 |
| Screen-saving functions | Pixel Shift, Low Bright |
| Signal loop through | DisplayPort, RJ45 |

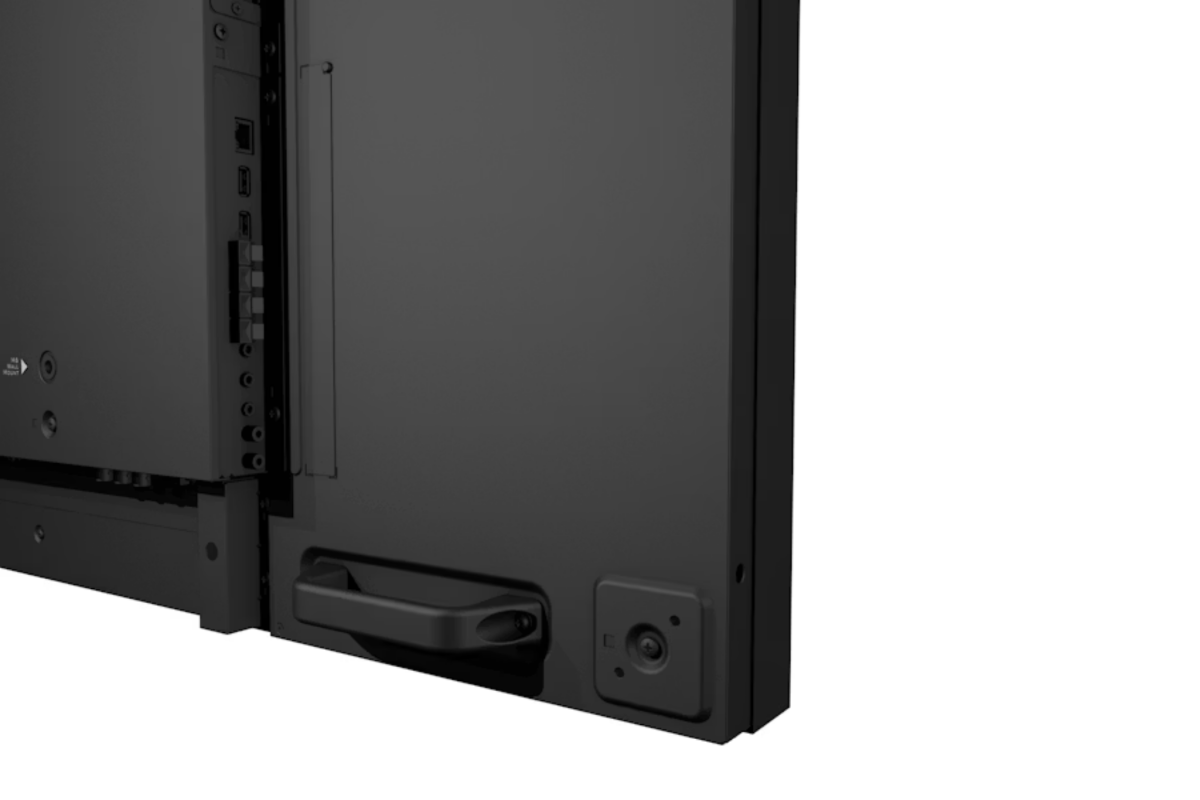

| Ease of installation | Carrying Handles, Smart Insert |
| Energy-saving functions | Smart Power |
| Network controllable | LAN (RJ45) |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 5000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20 - 80% (without condensation) |
| Humidity range (storage) [RH] | 5 - 95% (without condensation) |
Power
| Consumption (Typical) | 164 W |
|---|---|
| Consumption (Max) | 228 W |
| Standby power consumption | <0.50 W |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W (RMS) |
|---|
Accessories
| Included Accessories | Gap pad x 3, IR sensor cable (1.8 m) (x 1), Quick start guide (x 1), Remote control and AAA batteries, RJ45/RS232 converter, Wire Clamper (x 3), Power cord, DP cable (x1), RJ45 cable (x1), Edge alignment pin (x2), Kit-1 (x1), Kit-2 (x2) |
|---|
Miscellaneous
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE, FCC, Class A, RoHS, CB, ETL, BSMI, |
| Warranty | 3 year warranty |
Dimensions
| Smart Insert mount | 100 mm x 100 mm and 100 mm x 200 mm, 6 x M4 x L6 |
|---|---|
| Set dimensions in inches (W x H x D) | 47.69 x 26.85 x 3.85 (D@WallMount)/3.85 (D@Handle) inch |
| Bezel width(combined) | <3 mm |
| Set dimensions (W x H x D) | 1211.3 x 682.1 x 97.8 mm (D@WallMount)/97.8 mm (D@Handle) mm |

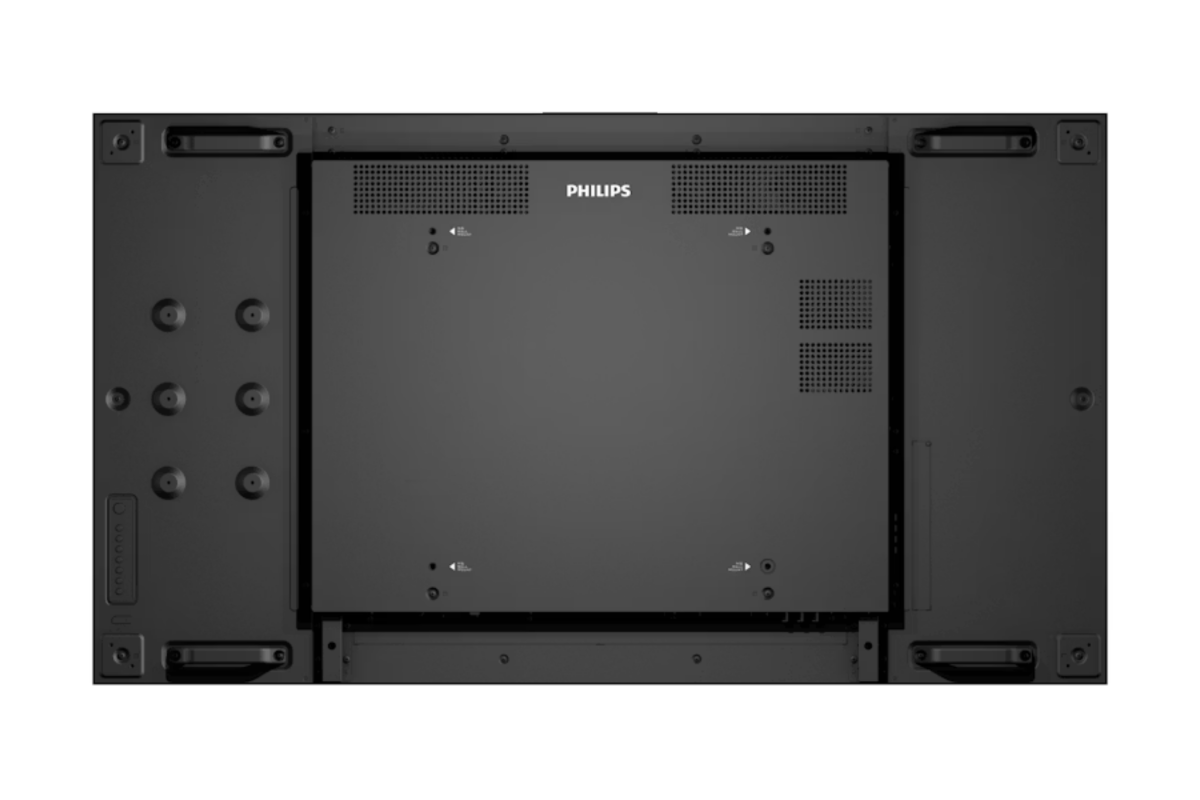

| Wall Mount | 400 mm x 400 mm, M6 |
| Product weight | 28.7 kg |
| Bezel width | 2.9 mm |
